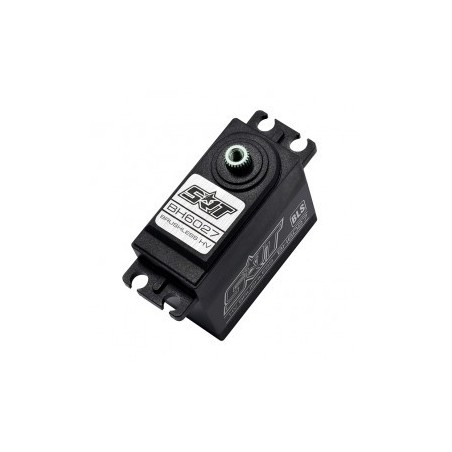

BH6027 1/8 HV Semi-Metal Case 27Kg 0.075s. Brushless Servo
KEY FEATURES
- Ideal for 1/10 on road applications
- incredible efficiency and low power consumption
- Aluminium case for good heat dissipation
- NMB dual main bearings
- 25T output shaft
Application :
1/10 On-road, 1/10 Off-road, 1/8 On-road, 1/8 Off-road
SRT SERVO OVERVIEW
The latest generation of SRT servos provides you with the performance you need for any scale vehicle Air/Plane/Boat/Robot application. are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequency: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.10 sec/60 degrees at no load
operating speed (7.4v): 0.08 sec/60 degrees at no load
operating speed (8.4v): 0.075 sec/60 degrees at no load
stall torque (6.0v): 21.0kg.cm (291.6 oz/in)
stall torque (7.4v): 25.0kg.cm (347.1 oz/in)
stall torque (8.4v): 27.0kg.cm (374.9 oz/in)
potentiometer drive: direct drive
dimensions: 40.7x20.5x38.5 mm /1.6x0.8x1.51 in
weight: 65.0g (2.29 oz)
connector wire length: jr 250 mm
