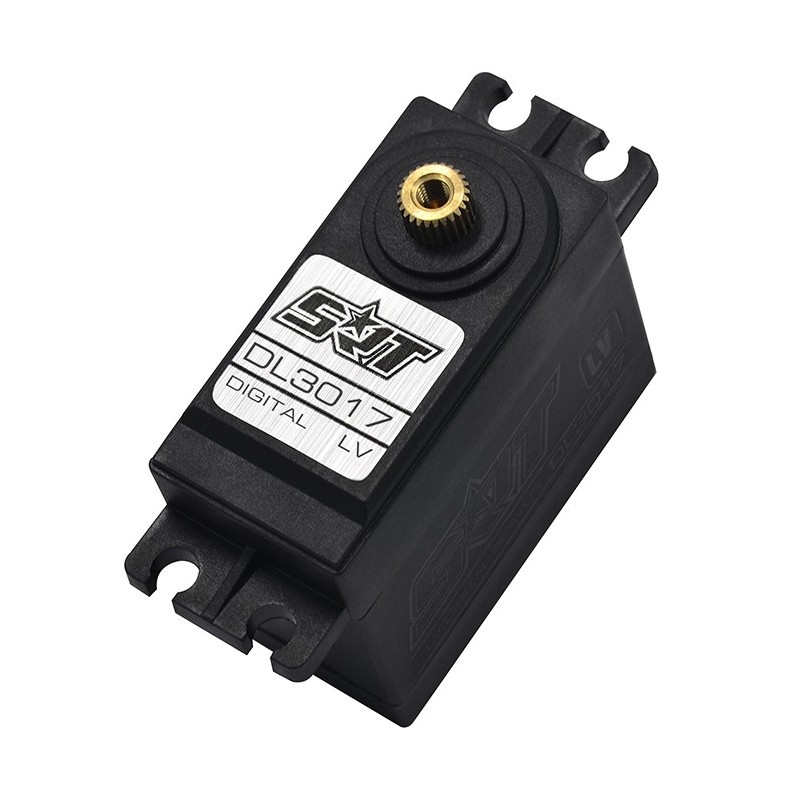

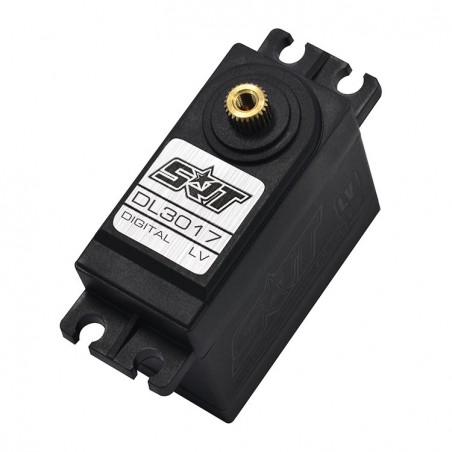

Coreless Servo SRT DL3017 LV 17kg - 0.15sec

KEY FEATURES:
- Ideal for 1/10 on road and 1/8 off road scale applications,  as well as large scale airplanes and jets
- Incredible efficiency and low power consumption
- 2 μsec Dead Band
- 1-Year Limited Warranty

€23.90
Quantity
In Stock



Secured Payment.



Super Fast Delivery.



Flexible Return Policy

PRODUCT SPECIFICATIONS:
- Type: Digital
- Bearing: Dual
- Motor Type: DC
- Gear Type: Metal
- Gear Material: Titanium & Copper
- Control system: pulse width control
- Working frequence: 1520μs / 330hz
- Operating voltage: dc4.8-6.0v
- Operating temperature range: -10 to + 60 degree
- Operating speed (4.8v): 0.17 sec/60 degrees at no load
- Operating speed (6.0v): 0.15 sec/60 degrees at no load
- Stall torque (4.8v): 15.5kg.cm (215.3 oz/in)
- Stall torque (6.0v): 17.0kg.cm (236.1 oz/in)
- Potentiometer drive: direct drive
- Dimensions: 40.7x20.5x39.5 mm /1.6x0.8x1.55 in
- Weight: 63.0g (2.22 oz)
- Connector wire length: jr 250 mm

Item no 4.8V 6.0V 7.4V Gear Motor Case Dimension
(mm)
Weight
(g)
Speed:
sec/60°
Torque:
kg-cm/oz-in
Speed:
sec/60°
Torque:
kg-cm/oz-in
Speed:
sec/60°
Torque:
kg-cm/oz-in
DL3017 0.17 15.5/215.3 0.15 17.0/236.1 N/A N/A Copper DC plastic 40.7*20.5*39.5 63.0
SRT-DL3017
