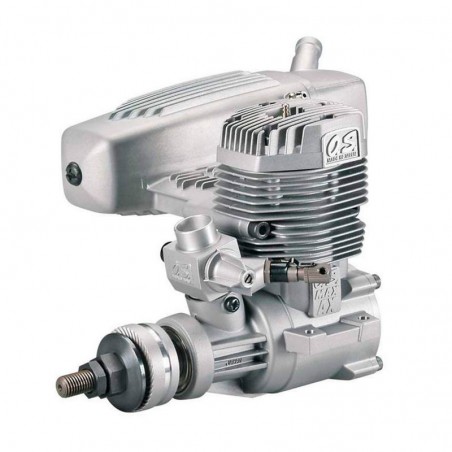

Combo Motor OS Max 95AX Avion 2T 61C con Escape 4040
Incluye:
- O.S. Max 95 AX ABL Aircraft Engine with E4040 muffler
- Carburetor
- #8 glow plug
- Needle valve extension
- Illustrated instruction manual
Especificaciones:
Displacement: 15.55cc
Bore: 27.7mm
Stroke: 25.8mm
Practical RPM: 2,000-16,000 RPM
Power Output: 2.9 PS, 2.86 HP/15,000 RPM
Weight Engine: 567g
Muffler: 178g
Recommended Props: 14x8, 15x6-8, 16x6-8
Crankshaft thread size: 5/16-24
Distance from center of engine to drive hub: 66.6mm
Height from crankcase bottom to top of cylinder head: 102mm
Height/crankshaft center to top of cylinder head: 81.3mm
Width including mounting tabs: 61mm
Width below mounting tabs: 42.6mm
Width between mounting holes same side: 25mm
Width between mounting holes opposite side: 52mm
Diameter of muffler body: 45mm
Distance from Center of Engine to Exhaust Outlet: 112mm
Angle of muffler in relation to engine: 4°
High Speed Needle: 1.5 - 2 turns out from fully closed
Low Speed Needle: 2mm gap between the needle and spray bar at full throttle (looking down the neck of the carb)
